Home > Cat Eye Road Stud >

Road Safety Stud Solar Glass Cat Eye Road Stud with Aluminium PC Material at Competitive

Product Categories

Shandong Safebuild Traffic Facilities Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

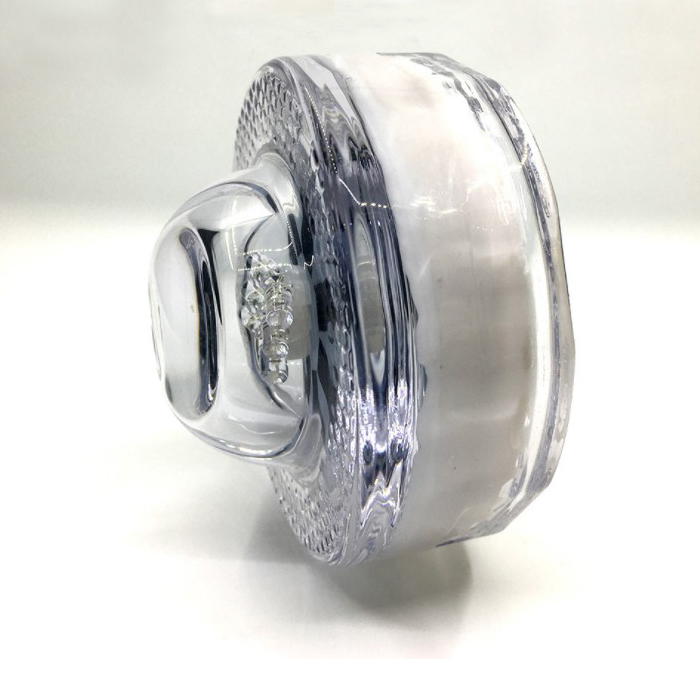

Road Safety Stud Solar Glass Cat Eye Road Stud with Aluminium PC Material at Competitive

Name: Road Safety Stud Solar Glass Cat Eye Road Stud with Aluminium PC Material at Competitive
Brand: Safebuild
Price: 10.00 USD

Quality Road Safety Stud Solar Glass Cat Eye Road Stud with Aluminium PC Material at Competitive wholesale

Place of Origin : Shandong, China

Brand Name : Safebuild

Model Number : 104*123*25

Material : Aluminium+PC

Color : Red

Product name : LED Solar Road Stud

Application : Road Warning

Name : LED Road Stud

Type : Road Cone Sign

Size : 104*123*23mm

Keywords : Road Safety Stud

Feature : High Reflection

LED Color : Red, Blue, Yellow, White, Green

Packaging Details : Export standard bundle or as clients request

Supply Ability : 200000 Piece/Pieces per Year

MOQ : 20 pieces

Price : $10.00/pieces 20-199 pieces

Contact Now

Products Description

Road studs are traffic reflectors for the highway, they are also known as raised road signs.
They are a kind of traffic safety product that is mainly installed in the middle of the road marking line or the middle of the
double yellow line to remind the driver to drive according to the lane through its reverse reflection performance. The
specifications of the spike are generally 136mm*50mm.
There are a variety of reflectors, studs, reflective beads, LED light, reflective film and so on.
According to the material they are made with they can be divided into:
1. Cast aluminum road studs;
2. Plastic road studs;
3. Glass road studs;
5. Solar road studs;

Solar studs are widely used for controlling traffic flow with a wide number of different applications. There are a number of well known and widely accepted colors, with lights in particular orientations to make the message to a driver clear and univocal, thereby improving the traffic flow of the road and enhancing safety aspects. The new designed and patent solar stud could stand the pressure of 30 Tons allowing cars to drive on the solar led marker lights directly.

Road Safety Stud Solar Glass Cat Eye Road Stud with Aluminium PC Material at Competitive

Solar road stud is a kind of stud, which is set along the road surface and used at night or in rain or fog to indicate the direction of the road. It is composed of reverse reflection material, shell, solar panel, LED and control device. It is a visual induction facility with active luminescence and passive reflection performance, which is usually used in combination with the marking line. The working principle of solar energy road stud is that the solar panels absorb sunlight during the day, the solar energy is converted into electrical energy, and it is then stored in the storage devices (batteries or capacitors). In the evening, the electricity is automatically converted into light energy (through the photoelectric switch control), through the LED light path outline which induce the driver's line of sight.

Details Images

Product Paramenters

Specification parameters:

Size: 100 * 62 mm, 0.7kg/piece
Technical parameters:
1. Energy storage element: Rechargeable battery 1.2V/ 600mAh Ni-MH high-temperature battery charge and discharge times >1000 times, the capacity is not easy to drop, the battery life is three years;
2. Solar cell: (monocrystalline silicon) 2.5V/ 120mAh
3. Working time: Under standard light intensity, it can work continuously for more than 240 hours for 30 hours at a time;
4. Display mode: flashing (default: 2Hz, customizable), or straight bright, one side or two sides;
5. Display device:Φ5 ultra bright anti-fog LED, LED lamp bead color can be customized
6. Display colors: red, yellow, white, blue and green, etc. Visual distance: greater than 500M;
7. Material: Tempered glass
8. Starting light intensity: positive light is less than 500Lux;
9. Working environment: -20℃ ~ 70℃;
10. The installation is embedded/ buried lamp.

11. Water proof grade: IP68

LED road stud is an active road safety device fixed on the road for marking and depicting night visibility. It is a
separate device module with solar energy, batteries, LEDs and electronics designed to switch between dusk and flash automatically on all night to provide drivers with sufficient vision and advance warning on the road. Unlike passive reflective cat's eyes, the effectiveness of LED cat's eyes does not depend on the intensity and range of the vehicle's headlights. Instead, free solar energy is used to operate leds that flash all night, providing remote visibility and providing guidance and warning to road users to improve road driving safety.

Product packaging

Why Choose Us

Company Profile

Shandong Safebuild Traffic Facilities Co.,Ltd was established in 2015. It is located in Liaocheng City, Shandong Province, China. We specialise in manufacturing and exporting Highway Guardrail and other accessories such as traffic safety products.
Our company has an advanced production line of plastic spraying and hot-dip galvanizing for guardrail . According to the
different construction environment, and corresponding surface treatments can be adopted to achieve good corrosion resistance, moisture resistance and weather resistance. We also specialise in the production of guardrail accessories like reflectors and other road safety products such as road suds.
Our aim is to Safebuild people, with our professional, wholehearted and devoting spirits as well as our remarkable products quality and favorable service system , sincerely hope to work together with the vast number of clients!

Installation Instructions

FAQ

1.Q:Are you a factory or trading company?
A:We are factory which has been in this field for more than 10 years.

2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Liaocheng City, Shandong Province, China. All our clients, from home or abroad, are warmly welcome to visit us!

3.Q:How can I get some samples?
A: We are honored to offer you samples. Please send a sample inquiry and leave us your email address, then we will send you more information about the samples for your reference.

4.Q:How does your factory do regarding quality control?
A:Quality is priority. All our staff members always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO 9001 and SGS authentication.
